Repair Procedures: Replacement

CAUTION: Put on gloves to prevent hand injuries.

Information

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
Take care not to bend or scratch the trim and panels.

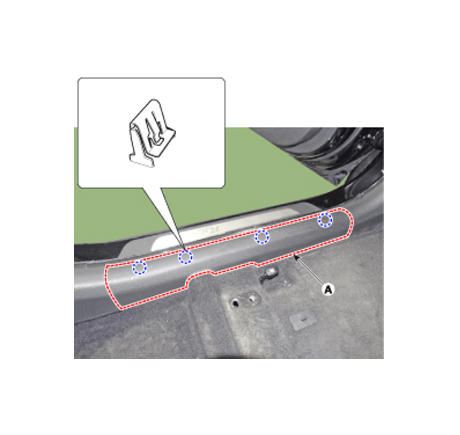

Using a screwdriver or remover, remove the front door scuff trim (A).

Courtesy of HYUNDAI MOTOR AMERICA

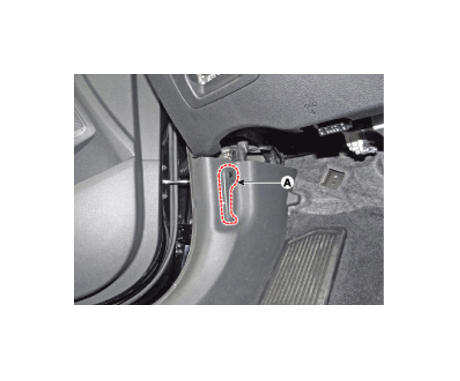

Remove the hook area of hood latch release handle (A) by holding it with a cylindrical remover.

Courtesy of HYUNDAI MOTOR AMERICA

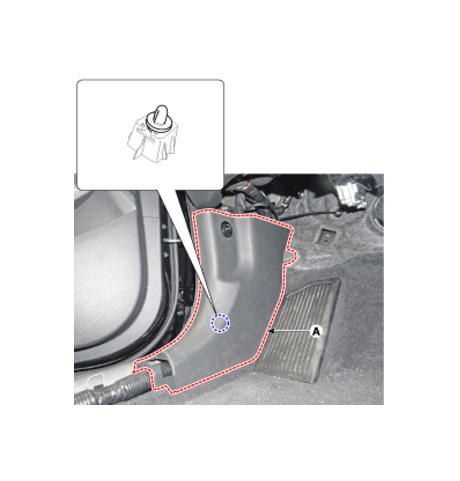

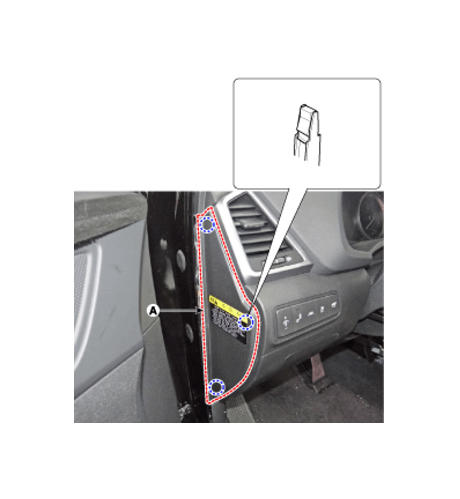

Using a screwdriver or remover, remove the cowl side trim (A).

Courtesy of HYUNDAI MOTOR AMERICA
Using a screwdriver or remover, remove the crash pad side cover [LH] (A).

Courtesy of HYUNDAI MOTOR AMERICA

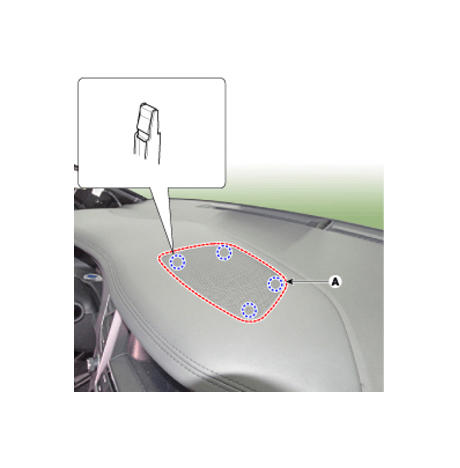

Using a screwdriver or remover, remove the center speaker grill (A).

Courtesy of HYUNDAI MOTOR AMERICA

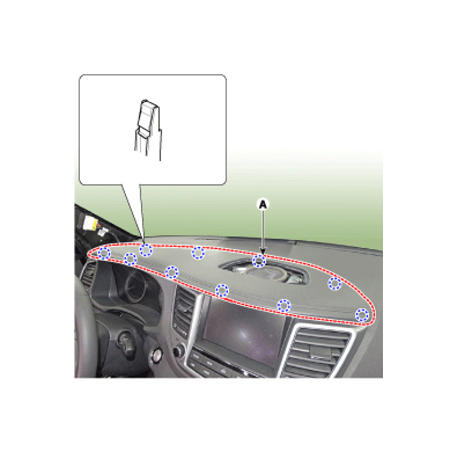

Using a screwdriver or remover, remove the cluster fascia upper panel (A).

Courtesy of HYUNDAI MOTOR AMERICA

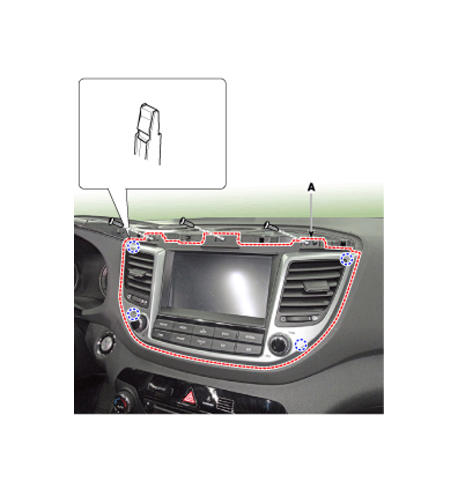

Loosen the mounting screws and remove the center air vent cover (A).

Courtesy of HYUNDAI MOTOR AMERICA

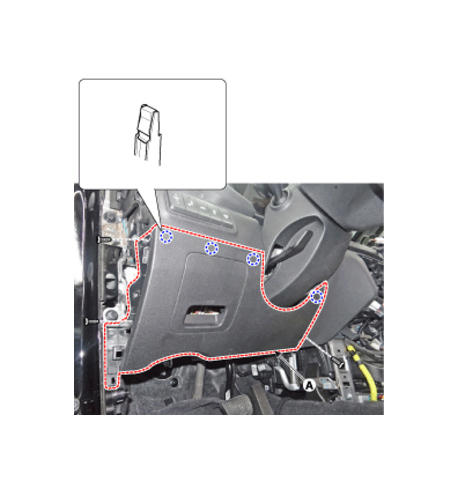

Loosen the mounting screws and remove the crash pad lower panel (A).

Courtesy of HYUNDAI MOTOR AMERICA

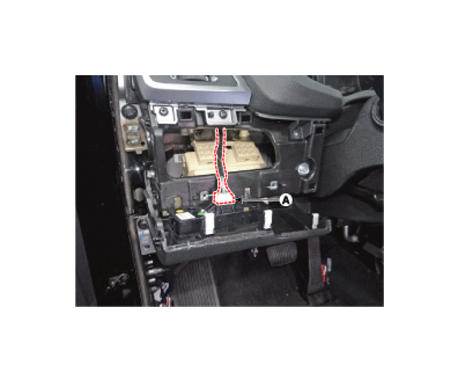

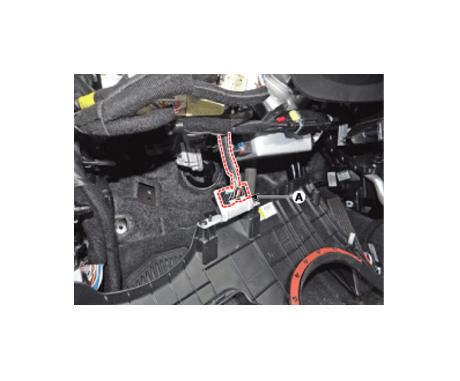

Disconnect the crash pad lower switch connectors (A).

Courtesy of HYUNDAI MOTOR AMERICA

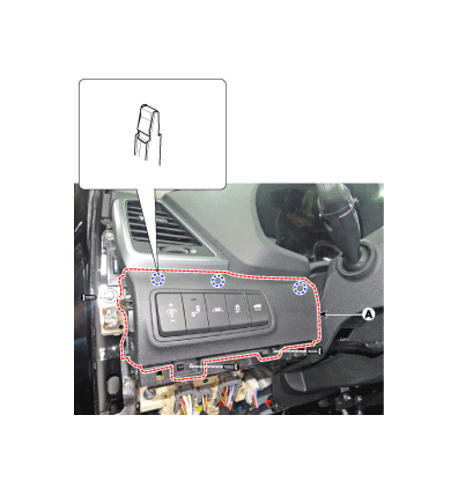

Loosen the mounting screw and remove the crash pad garnish [LH] (A).

Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the crash pad side switch connectors (A).

Courtesy of HYUNDAI MOTOR AMERICA

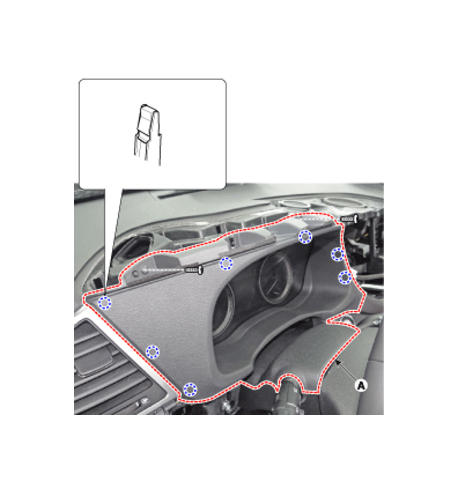

Loosen the mounting screws and remove the cluster fascia panel (A).

Courtesy of HYUNDAI MOTOR AMERICA
Install in the reverse order of removal.
Information
- Make sure the connector are connected in properly.
- Replace any damaged clips (or pin-type retainers).
