Repair Procedures: Replacement

[Rear torsion beam axle bush replace]

1. Remove the rear torsion beam axle from the vehicle.

   (Refer to Rear Torsion Beam Axle - "REMOVAL ")

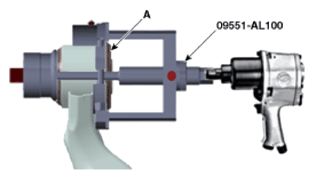

2. Using the SST (09551-AL100) and press, replace the bush (A).

   Courtesy of HYUNDAI MOTOR AMERICA

   CAUTION:

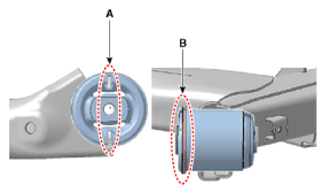

   • When press in the bush, press the same direction of the void (A) and the flange direction (B) before detaching.

     Courtesy of HYUNDAI MOTOR AMERICA
