Repair Procedures: Disassembly

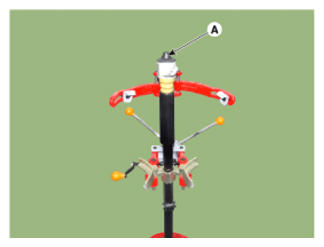

  1. Remove the lock nut cover (A).
    G12606009Courtesy of HYUNDAI MOTOR AMERICA

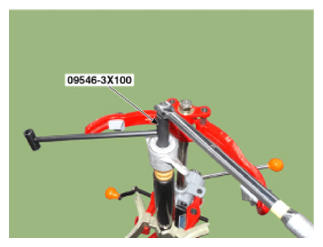

  2. Using the special tool (09546-3X100), install the self locking nut.
    G12606010Courtesy of HYUNDAI MOTOR AMERICA

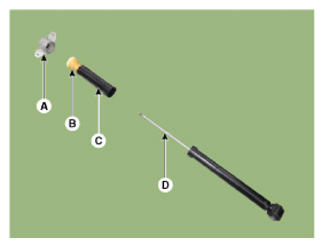

  3. Separate the bracket assembly (A), bumper rubber (B), dust cover (C), shock absorber (D).
    G12606011Courtesy of HYUNDAI MOTOR AMERICA
