Zero Re- Calibration Of Occupant Classification Sensor

  1. Ignition "OFF", connect GDS.

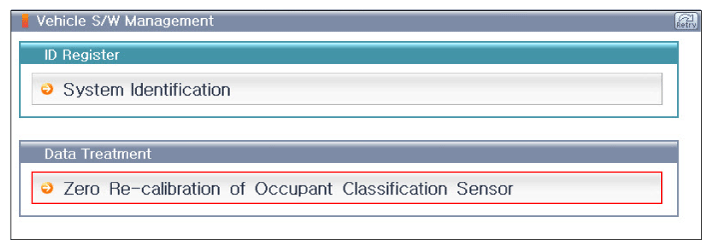

  2. Ignition "ON"& Engine "OFF", select "Vehicle S/W Management" mode and select "Zero Re-Calibration of Occupant Classification Sensor".
  3. And then press ENTER
G12595968Courtesy of HYUNDAI MOTOR AMERICA
