Monitor GDS Data

  1. Ignition "OFF", connect GDS.
  2. Ignition "ON"& Engine "OFF", select "Current Data" mode.
  3. Monitor the "Side airbag Front-Driver resistance" parameter on the GDS.

    Specification:  Resistance of Side airbag front-Driver is between 1.0Ω and 6.9Ω

    Reference:

    In a case of an open in the Side airbag Front-Driver circuit: FAIL

    In a case of a short to battery in the Side airbag Front-Driver circuit: FAIL

    In a case of a short to ground in the Side airbag Front-Driver circuit: FAIL

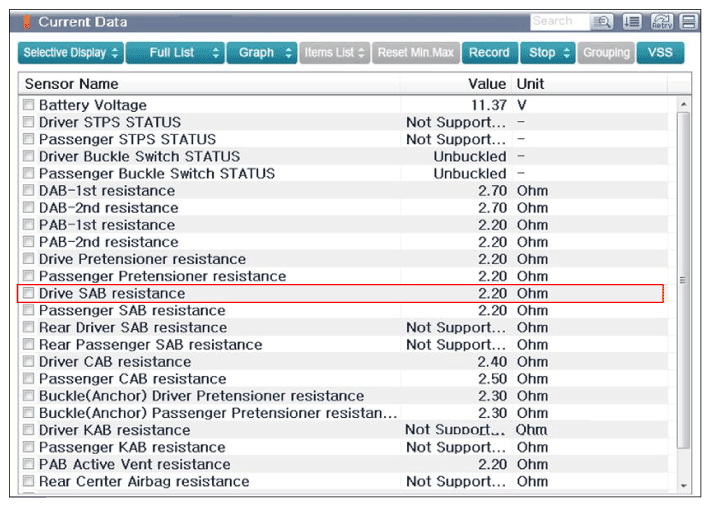

    G12595943Courtesy of HYUNDAI MOTOR AMERICA
  4. Is parameter displayed within specifications?

    YES

    • Displaying nothing (no DTC) or DTC with label "H"(historical) shows that Fault is intermittent caused by poor contact in the part's and/or SRSCM connector or was repaired and SRSCM memory was not cleared.
    • Thoroughly check shorting bar/shorting bar release pin and connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
    • Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.

    NO
