Side Airbag Front-Passenger

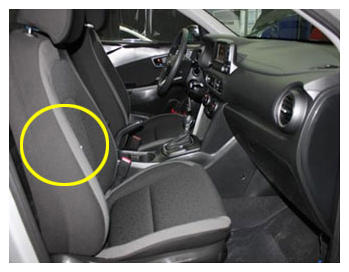

G12595900Courtesy of HYUNDAI MOTOR AMERICA

Side Airbag (hereinafter referred to SAB) located in driver and passenger seat protects passenger's head and shoulder. SAB is consist of air bag and inflator.

Air bag reduces impact of collision by filled up gas.

Inflator keeps gas and uses it to deploy air bag on collision.

CAUTION: Never measure resistance of SAB directly, Current of measuring device may cause unexpected air bag deploy.
