Curtain Airbag

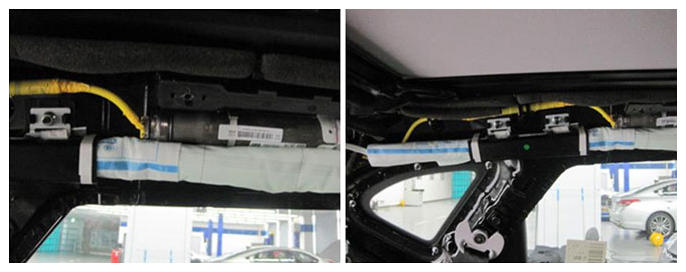

G12595901Courtesy of HYUNDAI MOTOR AMERICA

Curtain Airbag (hereinafter referred to CAB) is located at driver and passenger side of headliner It protects passenger's head and shoulder from fragments of glass or something sharpen caused by overturn. CAB is consist of air bag and inflator.

Air bag reduces impact of collision by filled up gas.

Inflator keeps gas and uses it to deploy air bag on collision.

CAUTION: Never measure resistance of CAB directly, Current of measuring device may cause unexpected air bag deploy.
