Repair Procedures: Removal
WARNING: This page is about a different variant/trim than selected.
- Remove the fuel pump.
(Refer to Fuel Delivery System - "FUEL PUMP ")

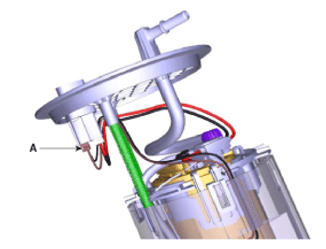

- Disconnect the fuel sender connector (A).
- Press the fixing hook (A) with a driver and then remove fuel sender (B) in the arrow direction.
