Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the fuel pump.

    (Refer to Fuel Delivery System - "FUEL PUMP ")

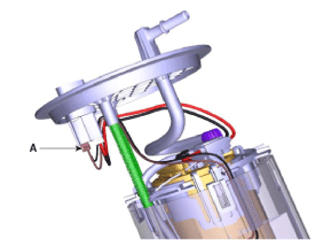

  2. Disconnect the fuel sender connector (A).
    G12606974Courtesy of HYUNDAI MOTOR AMERICA
  3. Press the fixing hook (A) with a driver and then remove fuel sender (B) in the arrow direction.
    G12606975Courtesy of HYUNDAI MOTOR AMERICA

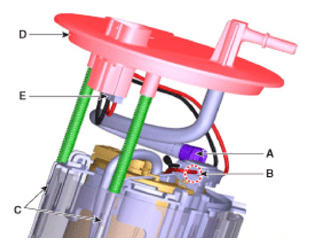

  4. Remove the fuel feed tube (B) after removing the fix clip (A).
  5. Remove the head assembly (D) after removing the fix hooks (C).
  6. Disconnect the fuel pump motor connector (E).
    G12606976Courtesy of HYUNDAI MOTOR AMERICA
  7. Remove the reservior-cup (B) after releasing the fixing hooks (A).
    G12606977Courtesy of HYUNDAI MOTOR AMERICA
  8. Disconnect the ground cable (A).
  9. Disconnect the fuel pump motor connector (B).
    G12606978Courtesy of HYUNDAI MOTOR AMERICA
  10. Remove the snap pin (A), and then remove the fuel pressure regulator (B).
    G12606979Courtesy of HYUNDAI MOTOR AMERICA
  11. Remove the pre-filter (B) after releasing the fixing hooks (A).
    G12606980Courtesy of HYUNDAI MOTOR AMERICA
  12. Remove the fuel pump motor (A) in the arrow direction.
    G12606981Courtesy of HYUNDAI MOTOR AMERICA
    G12606982Courtesy of HYUNDAI MOTOR AMERICA
