Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the fuel pump.

    (Refer to Fuel Delivery System - "FUEL PUMP ")

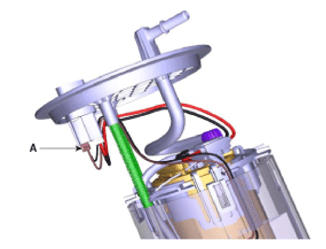

  2. Disconnect the fuel sender connector (A).
    G12606986Courtesy of HYUNDAI MOTOR AMERICA
  3. Press the fixing hook (A) with a driver and then remove fuel sender (B) in the arrow direction.
    G12606987Courtesy of HYUNDAI MOTOR AMERICA

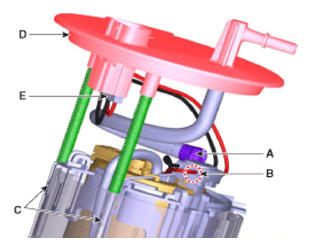

  4. Remove the fuel feed tube (B) after removing the fix clip (A).
  5. Remove the head assembly (D) after removing the fix hooks (C).
  6. Disconnect the fuel pump motor connector (E).
    G12606988Courtesy of HYUNDAI MOTOR AMERICA
  7. Remove the reservior-cup (B) after releasing the fixing hooks (A).
    G12606989Courtesy of HYUNDAI MOTOR AMERICA
  8. Disconnect the ground cable (A).
  9. Disconnect the fuel pump motor connector (B).
    G12606990Courtesy of HYUNDAI MOTOR AMERICA
  10. Remove the snap pin (A), and then remove the fuel pressure regulator (B).
    G12606991Courtesy of HYUNDAI MOTOR AMERICA
