Repair Procedures: Removal
WARNING: This page is about a different variant/trim than selected.
- Remove the rear-LH wheel, tire, and the inner wheel house.

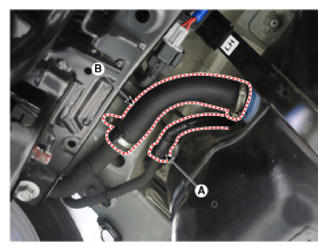

- Disconnect the fuel filter hose (A) and the ventilation hose (B).

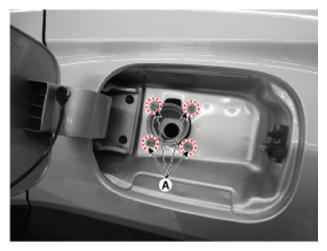

- Open the fuel filler door and unfasten the filler-neck assembly mounting screw (A).

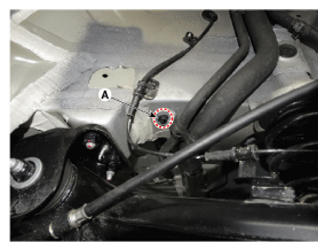

- Remove the filler-neck assembly from the vehicle after removing the bracket mounting bolts (A).
