Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Turn the ignition switch OFF and disconnect the negative (-) battery cable.

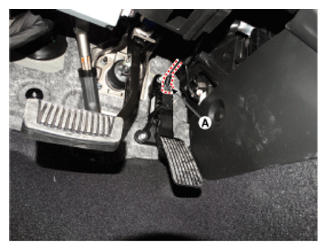

  2. Disconnect the accelerator position sensor connector (A).
    G12607001Courtesy of HYUNDAI MOTOR AMERICA
  3. Remove the installation nuts (A) and then remove the accelerator pedal module.
    G12607002Courtesy of HYUNDAI MOTOR AMERICA
