Removal And Installation

WARNING: This page is about a different variant/trim than selected.
  1. Remove the engine cover.

    (Refer to Engine and Transaxle Assembly - "ENGINE COVER ")

  2. Drain the engine coolant so its level is below water temperature control assembly.

    (Refer to Cooling System - "COOLANT ")

  3. Remove the air duct and air cleaner assembly.

    (Refer to Intake and Exhaust System - "AIR CLEANER ")

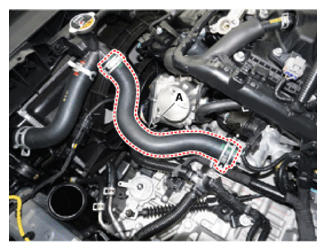

  4. Disconnect the radiator upper hose (A).
    G12606629Courtesy of HYUNDAI MOTOR AMERICA

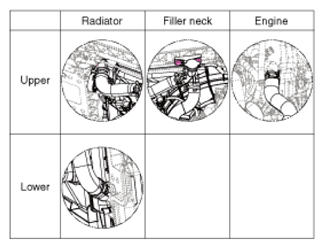

    NOTE:
    • When installing radiator hoses, install as shown in illustrations.
      G12606630Courtesy of HYUNDAI MOTOR AMERICA

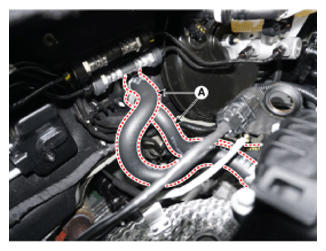

  5. Disconnect the heater hoses (A).
    G12606631Courtesy of HYUNDAI MOTOR AMERICA

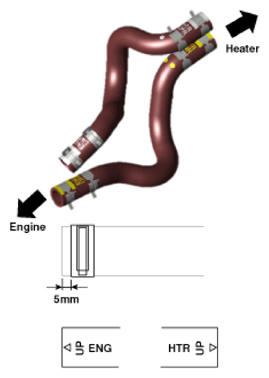

    NOTE:
    • When installing the heater hoses, install as shown in illustrations.
      G12606632Courtesy of HYUNDAI MOTOR AMERICA

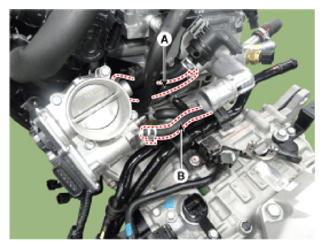

  6. Disconnect the bypass hose (A) and the throttle body coolant hose (B) (if equipped).
    G12606633Courtesy of HYUNDAI MOTOR AMERICA

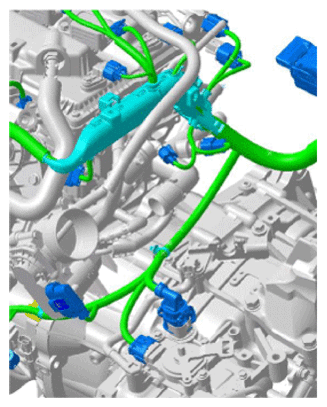

  7. Disconnect the wiring connectors and harness clamps and remove the connector brackets around the water temperature control assembly.
    G12606634Courtesy of HYUNDAI MOTOR AMERICA

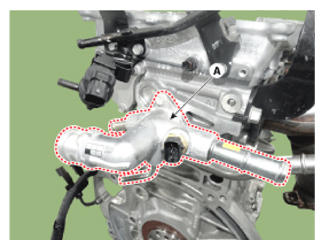

  8. Remove the water temperature control assembly (A) with the O-ring.
    • Tightening torque:

      9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

      G12606635Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:
    • Install a new O-ring.
    • Clean surface on the O-ring and install the O-ring after wetting with water.
  9. Install in the reverse order of removal.
  10. Fill the engine coolant.

    (Refer to Cooling System - "COOLANT ")

  11. Start engine and check for leaks.
