Removal And Installation

WARNING: This page is about a different variant/trim than selected.
  1. Drain the coolant.

    (Refer to Cooling System - "COOLANT ")

  2. Remove the cooling fan.

    (Refer to Cooling System - "COOLING FAN ")

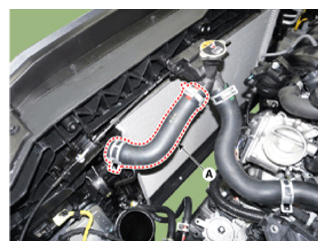

  3. Remove the radiator upper hose (A).
    G12606619Courtesy of HYUNDAI MOTOR AMERICA

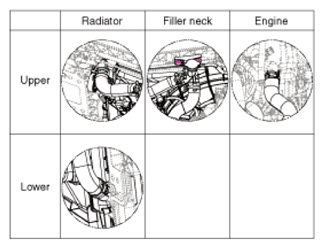

    NOTE:
    • When installing radiator hoses, install as shown in illustrations.
      G12606620Courtesy of HYUNDAI MOTOR AMERICA

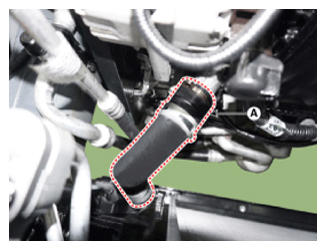

  4. Remove the radiator lower hose quick connector (A).
    G12606621Courtesy of HYUNDAI MOTOR AMERICA

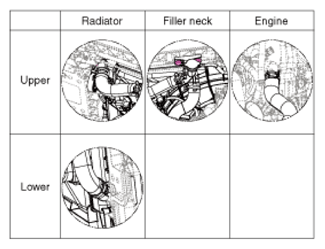

    NOTE:
    • When installing radiator hoses, install as shown in illustrations.
      G12606622Courtesy of HYUNDAI MOTOR AMERICA
  5. Disconnect the ATF cooler hoses.

    (Refer to Automatic Transaxle Cooling System - "OIL COOLER ")

  6. Remove the front bumper cover.

    (Refer to Body - "FRONT BUMPER COVER ")

  7. Remove the radiator upper mounting brackets (A).

    Tightening torque:

    7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb-ft)

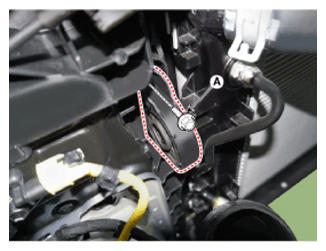

    [LH]

    G12606623Courtesy of HYUNDAI MOTOR AMERICA

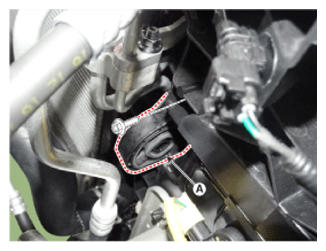

    [RH]

    G12606624Courtesy of HYUNDAI MOTOR AMERICA
  8. Remove the active air flap (AAF).

    (Refer to Cooling System - "ACTIVE AIR FLAP (AAF) ")

  9. Separate the A/C condenser from the radiator assembly.

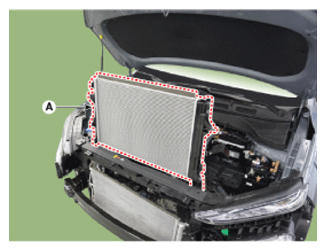

  10. Remove the radiator assembly (A) from the vehicle.
    G12606625Courtesy of HYUNDAI MOTOR AMERICA
  11. Install in the reverse order of removal.
  12. Fill the radiator with coolant and check for leaks.

    (Refer to Cooling System - "COOLANT ")

    NOTE:
    • Bleed air from the cooling system.
    • (Refer to Cooling System - "COOLANT ")
