Heater Pipe
WARNING: This page is about a different variant/trim than selected.
- Remove the intake manifold.
(Refer to Intake and Exhaust System - "INTAKE MANIFOLD ")

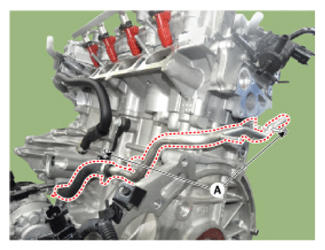

- Disconnect the bypass hose (A).

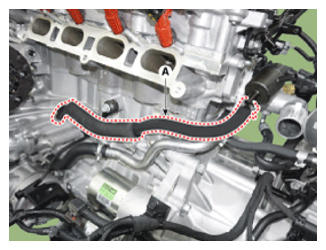

- Unfasten the heater pipe mounting bolts (A) and then remove the heater pipe.
Tightening torque:
19.6 - 23.5 N.m (2.0 - 2.4 kgf.m, 14.5 - 17.4 lb-ft)
NOTE:- Do not reuse the seal bolts.
- Install in the reverse order of removal.
- Fill the engine coolant.
(Refer to Cooling System - "COOLANT ")
- Start the engine and check for leaks.
- Recheck the coolant level.
