Removal And Installation: Resistor
WARNING: This page is about a different variant/trim than selected.
- Disconnect the battery negative terminal.

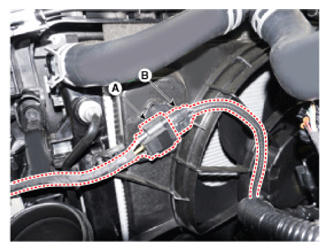

- Disconnect the wire harness connector (A) and the fan motor connector (B).
 Courtesy of HYUNDAI MOTOR AMERICA
|

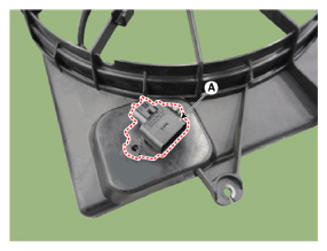

- Remove the resistor (A) from the cooling fan shroud.
Tightening torque:
1.8 - 2.5 N.m (0.18 - 0.25 kgf.m, 1.3 - 1.8 lb-ft)
 Courtesy of HYUNDAI MOTOR AMERICA
|
- Install in the reverse order of removal.
