Cooling Fan Assembly
WARNING: This page is about a different variant/trim than selected.
- Disconnect the battery negative terminal.
- Remove the air duct and air cleaner assembly.
(Refer to Intake and Exhaust System - "AIR CLEANER ")

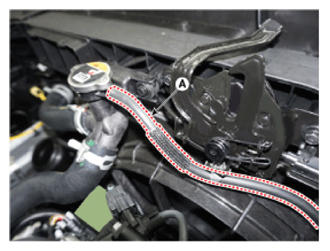

- Disconnect the over flow hose (A).

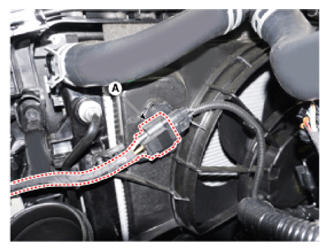

- Disconnect the wiring harness connector (A).

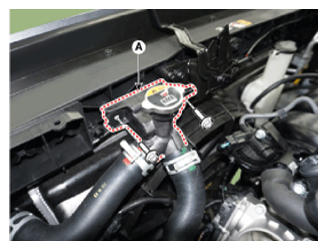

- Separate the filler neck assembly (A).
Tightening torque:
3.9 - 5.9 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.3 Ib-ft)
- Remove the hood latch.
(Refer to Body - "HOOD LATCH ")

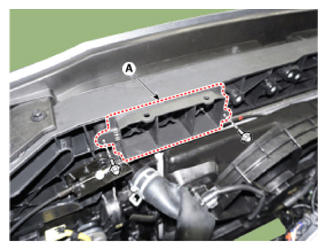

- Remove the intake shield (A).
Tightening torque:
7.8 - 9.8 N.m (0.8 - 1.0 kgf.m, 5.8 - 7.2 lb-ft)

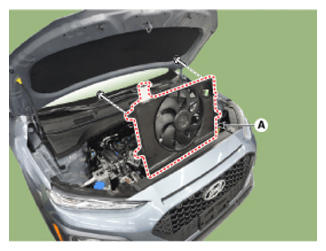

- Remove the cooling fan assembly (A).
Tightening torque:
4.9 - 7.8 N.m (0.5 - 0.8 kgf.m, 3.6 - 5.8 lb-ft)
- Install in the reverse order of removal.
