Repair Procedures: Disassembly
WARNING: This page is about a different variant/trim than selected.

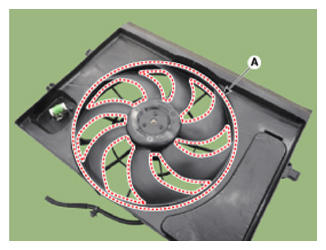

- Remove the cooling fan (A) from the cooling fan shroud.
Tightening torque:
2.8 - 3.2 N.m (0.28 - 0.33 kgf.m, 2.0 - 2.4 lb-ft)

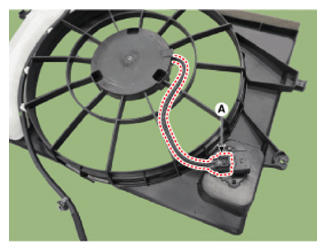

- Disconnect the fan motor connector (A) from the resistor.

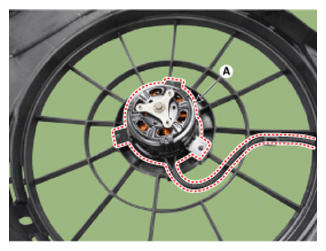

- Loosen the screws and then remove the fan motor (A) from the cooling fan shroud.
Tightening torque:
3.9 - 5.9 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.3 lb-ft)
- Assemble in the reverse order of disassembly.
