Removal And Installation
WARNING: This page is about a different variant/trim than selected.
- Disconnect the battery negative terminal.
- Remove the front bumper cover.
(Refer to Body - "FRONT BUMPER COVER ")

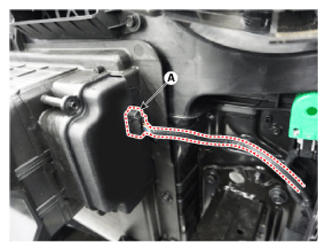

- Disconnect the active air flap (AAF) control unit connector (A).
- Remove the radiator side air guard (A).

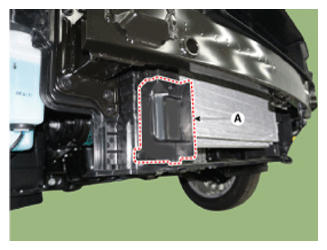

[LH]

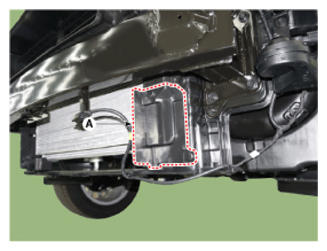

[RH]

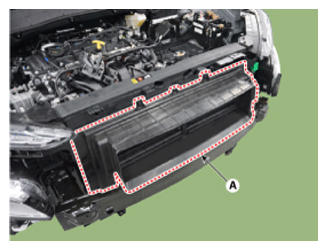

- Remove the active air flap (AAF) and duct assembly (A).
Tightening torque:
3.9 - 5.9 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.3 lb-ft)
- Install in the reverse order of removal.
