Repair Procedures: Replacement

WARNING: This page is about a different variant/trim than selected.
  1. Remove the transfer assembly.

    (Refer to 4WD System - "TRANSFER ASSEMBLY ")

    [Gasoline 1.6]

  2. Remove the oil seal (A).
    G12605719Courtesy of HYUNDAI MOTOR AMERICA

    [Gasoline 2.0]

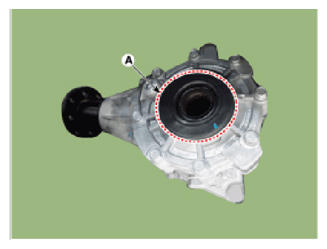

  3. Remove the dust cover (A).
    G12605720Courtesy of HYUNDAI MOTOR AMERICA

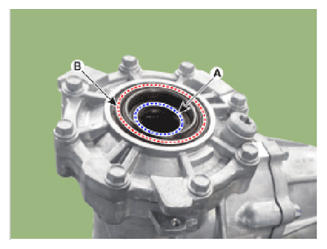

  4. Remove the oil seal (A), (B) of driveshaft side.
    G12605721Courtesy of HYUNDAI MOTOR AMERICA

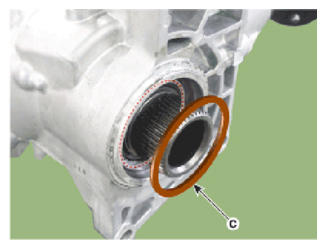

  5. Remove the oil seal (C) of transaxle side.
    G12605722Courtesy of HYUNDAI MOTOR AMERICA

    [Gasoline 1.6]

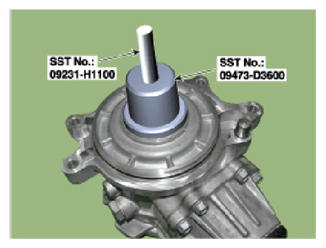

  6. Install the oil seal with a SST (No.:09473-D3600, 09231-H1100).
    G12605723Courtesy of HYUNDAI MOTOR AMERICA

    [Gasoline 2.0]

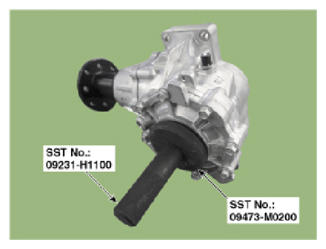

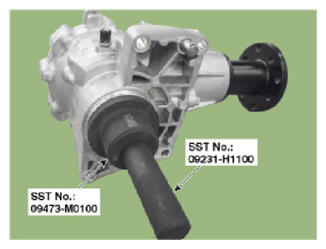

  7. Install the oil seal with a SST.

    SST (No.: 09473-M0100, 09231-H1100) [Transaxle side]

    SST (No.: 09473-M0200, 09231-H1100) [Driveshaft side]

    G12605724Courtesy of HYUNDAI MOTOR AMERICA
    G12605725Courtesy of HYUNDAI MOTOR AMERICA
  8. To install, reverse the removal procedures.
