Removal And Installation

WARNING: This page is about a different variant/trim than selected.

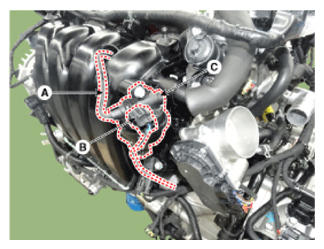

  1. Disconnect the vacuum hose (A).
  2. Remove the variable intake solenoid (VIS) actuator connector (B) and actuator (C).

    Tightening torque:

    9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

    G12606693Courtesy of HYUNDAI MOTOR AMERICA
  3. Install in the reverse order of removal.
