Front Muffler

WARNING: This page is about a different variant/trim than selected.

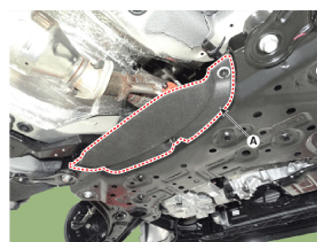

Remove the front muffler heat protector (A).
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

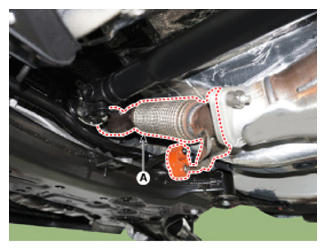

Remove the front muffler (A).
Tightening torque:

39.2 - 58.8 N.m (4.0 - 6.0 kgf.m, 28.9 - 43.4 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
- When installing, replace with new gaskets.
Install in the reverse order of removal.
