Removal And Installation

WARNING: This page is about a different variant/trim than selected.

Disconnect the battery negative terminal.
Remove the engine cover.
(Refer to Engine and Transaxle Assembly - "ENGINE COVER ")
Remove the air duct and air cleaner assembly.
(Refer to Intake and Exhaust System - "AIR CLEANER ")
Remove the engine room under cover.
(Refer to Engine and Transaxle Assembly - "ENGINE ROOM UNDER COVER ")

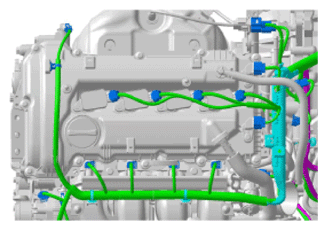

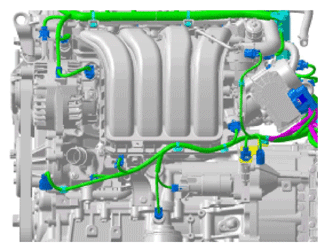

Disconnect the wiring connectors and harness clamps and remove the wiring protector around the intake manifold.

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA

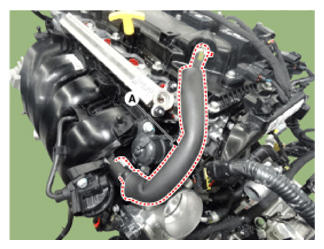

Disconnect the positive crankcase ventilation (PCV) hose (A).

Courtesy of HYUNDAI MOTOR AMERICA
Unfasten the electric throttle body control (ETC) module bolts.
(Refer to Engine Control/Fuel System - "ETC (ELECTRIC THROTTLE BODY CONTROL) SYSTEM ")

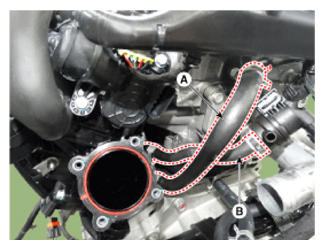

Disconnect the vacuum hose (A) and purge control solenoid valve (PCSV) hose (B).

Courtesy of HYUNDAI MOTOR AMERICA

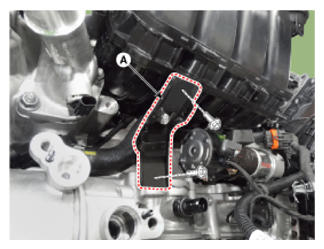

Remove the intake manifold stay (A).
Tightening torque:

18.6 - 23.5 N.m (1.9 - 2.4 kgf.m, 13.7 - 17.4 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

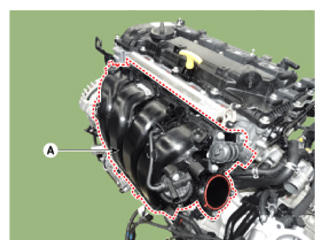

Remove the intake manifold (A) with the gasket.
Tightening torque:

18.6 - 23.5 N.m (1.9 - 2.4 kgf.m, 13.7 - 17.4 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
- When installing the intake manifold, tighten the bolts and nuts with pre-torque first, and then tighten the bolts and nuts with specified torque in the sequence shown.

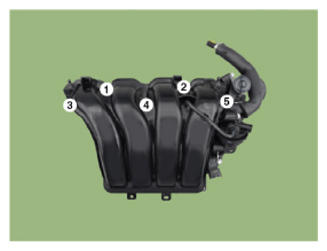

  Fig 1: Intake Manifold Bolts Tightening Sequence
  Courtesy of HYUNDAI MOTOR AMERICA
Install in the reverse order of removal.
NOTE:
- When installing, replace with new gaskets.
