Home >> Hyundai >> 2018 >> Kona Limited, FWD >> Repair and Diagnosis >> External Pages >> Different variant/trim >> Section 3 (Intake And Exhaust System - 2.0L) >> Intake Manifold >> Components And Components Location >> Components

Components And Components Location: Components

WARNING: This page is about a different variant/trim than selected.

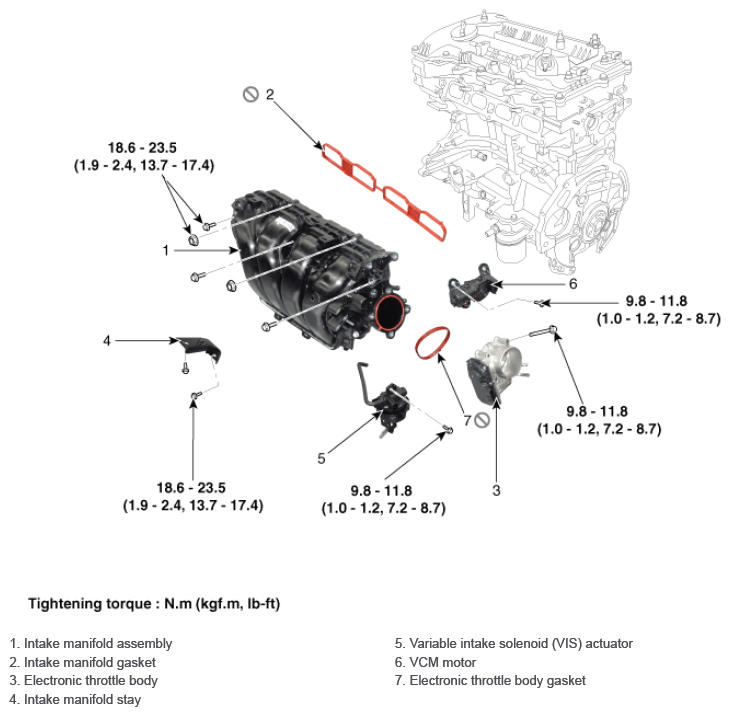

Fig 1: Intake Manifold Components With Torque Specification
G12606685Courtesy of HYUNDAI MOTOR AMERICA
