Air Cleaner Element Replacement

WARNING: This page is about a different variant/trim than selected.

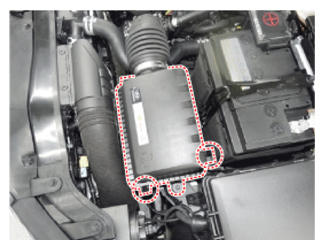

Remove the clamp and open the air cleaner cover.

Courtesy of HYUNDAI MOTOR AMERICA

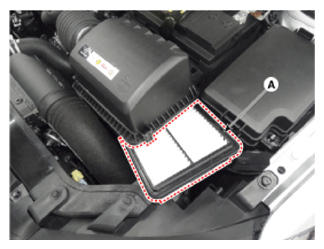

Replace the air cleaner element (A) with a new one.

Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
- If there is any foreign substance inside the air cleaner assembly, clean the inside and replace the air cleaner element.

Close the air cleaner cover and engage the clamp.

NOTE:

Insert the hinge (A) and engage the clamp when mounting the air cleaner cover.

Courtesy of HYUNDAI MOTOR AMERICA
