Air Cleaner Assembly
WARNING: This page is about a different variant/trim than selected.
- Disconnect the battery negative terminal.
- Remove the engine cover.
(Refer to Engine and Transaxle Assembly - "ENGINE COVER ")

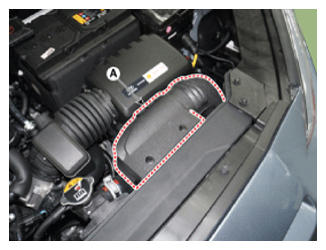

- Remove the air duct (A).

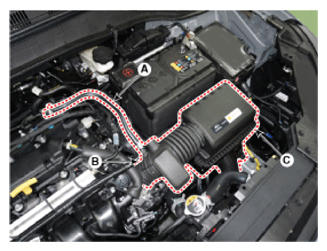

- Disconnect the breather hose (A).
- Disconnect the intake hose (B) and air cleaner assembly (C).
Tightening torque
Hose clamp:
2.9 - 4.9 N.m (0.3 - 0.5 kgf.m, 2.2 - 3.6 lb-ft)
Air cleaner bolts:
3.9 - 5.9 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.3 lb-ft)
- Install in the reverse order of removal.
