Wiring Harness Ground State Inspection

WARNING: This page is about a different variant/trim than selected.

NOTE:

Ground state
Mounting bolt tightening state (Chassis)
Mounting bolt tightening state (Engine)
Check the status of ground fault by chassis paint

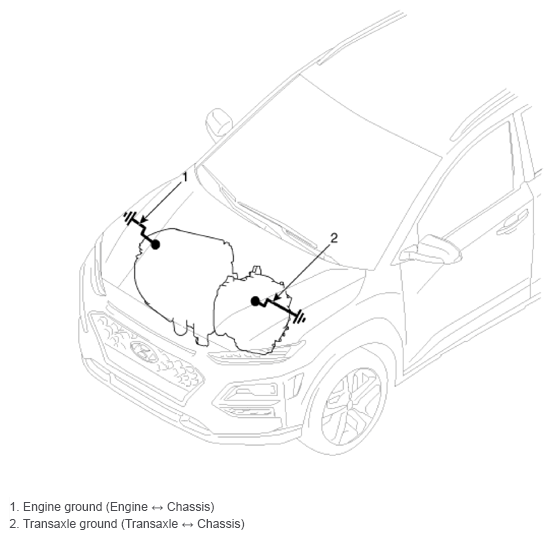

G12606742

Courtesy of HYUNDAI MOTOR AMERICA

NOTE:

Check the ground point.
(Refer to appropriate system wiring diagrams - ETM Harness Layout - "Ground Point")
