General Inspection

WARNING: This page is about a different variant/trim than selected.
  1. Check that the battery terminals are not loose or corroded.

    (Refer to Charging System - "BATTERY ")

  2. Check the fuses for continuity.
    1. Check the alternator fuse for continuity.
      G12606738Courtesy of HYUNDAI MOTOR AMERICA

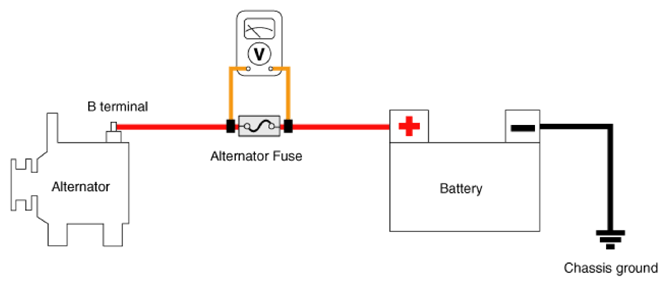

    2. Measure the voltage as shown in illustration below.

      Standard value:  About 0V

      G12606739Courtesy of HYUNDAI MOTOR AMERICA
    3. If the alternator fuse blown, below replace the alternator fuse.
      1. Turn ignition switch OFF and disconnect the battery negative (-) terminal.
      2. Remove the battery positive (+) cable mounting nuts.
      3. Remove the battery positive (+) cable.
      4. Replace the nominal alternator fuse or battery cable.
      5. Install in the reverse order of removal.
    4. Check the battery sensor fuse for continuity.
    5. If the alternator fuse blown, replace the battery sensor fuse.
    6. Measure the voltage as shown in illustration below.

      Standard Value:  About 0V

  3. Inspect Drive Belt
    1. Visually check the belt for excessive wear, frayed cords etc.

      If any defect has been found, replace the drive belt.

      NOTE:
      • Cracks on the rib side of a belt are considered acceptable. If the belt has chunks missing from the ribs, it should be replaced.
      G12606740Courtesy of HYUNDAI MOTOR AMERICA
  4. Drive belt tension measurement and adjustment.

    (Refer to Engine Mechanical System - "DRIVE BELT ")

  5. Visually Check Alternator Wiring And Listen For Abnormal Noises
    1. Check that the wiring is in good condition.
    2. Check that there is no abnormal noise from the alternator while the engine is running.
  6. Check Discharge Warning Light Circuit
    1. Warm up the engine and then turn it off.
    2. Turn off all accessories
    3. Turn the ignition switch "ON". Check that the discharge warning light is lit.
    4. Start the engine. Check that the light is lit..

      If the light does not go off as specified, troubleshoot the discharge light circuit.
