Battery Tray
WARNING: This page is about a different variant/trim than selected.
- Remove the battery.
(Refer to "REMOVAL ")
- Remove the air cleaner assembly.
(Refer to Engine Mechanical System - "AIR CLEANER ")
- Remove the ECM.
(Refer to Engine Control/Fuel System - "ENGINE CONTROL MODULE (ECM) ")

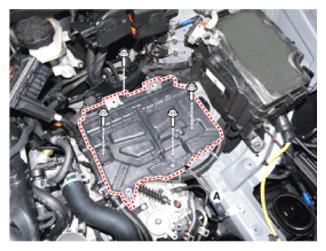

- Remove the battery tray (A) after loosening the bolts.
