Section 29 (Charging System - 2.0L): Alternator: Specifications: Specification
WARNING: This page is about a different variant/trim than selected.
| Item |
Specification |
| Rated voltage |
13.5V, 150A |
| Speed in use |
1,000 - 18,000 rpm |
| Voltage regulator |
IC Regulator built-in type |
| Regulator Setting Voltage |
External mode |

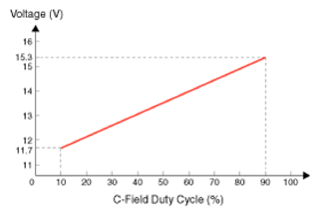

Refer to below graph |
| Internal mode |
14.55±0.3V |
| Temperature Gradient |
External mode |
0±3 mV/°C |
| Internal mode |
-3.5±2mV/°C |
 Courtesy of HYUNDAI MOTOR AMERICA
|
