Repair Procedures: Removal
WARNING: This page is about a different variant/trim than selected.
- Turn ignition switch OFF and disconnect the negative (-) battery cable.
- Remove the drive belt.
(Refer to Engine Mechanical System - "DRIVE BELT ")
- Disconnect the alternator connector (A) and the cable (B) from alternator "B" terminal.

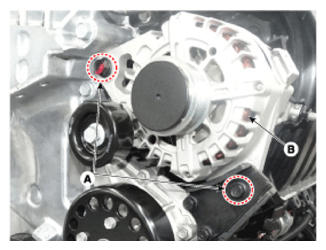

- Remove the alternator (B) after loosening the mounting bolts (A).
