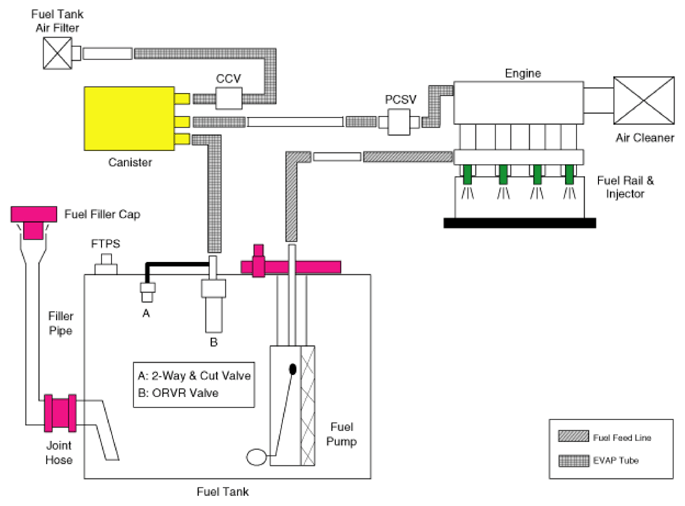

Schematic Diagram: Notes

WARNING: This page is about a different variant/trim than selected.

G12606816

Courtesy of HYUNDAI MOTOR AMERICA
