Repair Procedures: Removal
WARNING: This page is about a different variant/trim than selected.
- Turn the ignition switch OFF and disconnect the battery negative (-) cable.
- Remove the fuel tank.
(Refer to Fuel Delivery System - "FUEL TANK ")

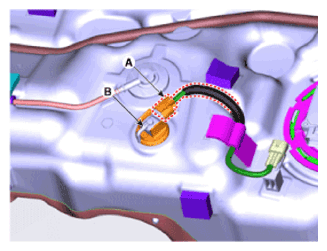

- Disconnect the fuel tank pressure sensor connector (A).
- Remove the fuel tank pressure sensor (B) after releasing the hooks vertically.
