Repair Procedures: Removal
WARNING: This page is about a different variant/trim than selected.
- Turn the ignition switch OFF and disconnect the battery negative (-) cable.

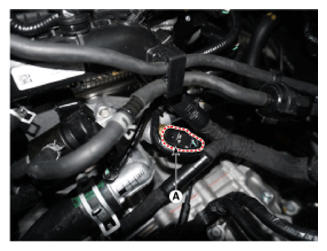

- Disconnect the engine coolant temperature sensor connector (A).

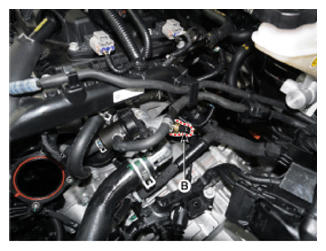

- Remove the sensor (B).CAUTION:
- Note that engine coolant may be flowed out from the water temperature control assembly when removing the sensor.
- Supplement the engine coolant.
(Refer to Engine Mechanical System - "COOLANT ")
