Section 23 (Engine Control System - 2.0L)
>>
Crankshaft Position Sensor (CKPS)
>>
Troubleshooting
>>
Waveform

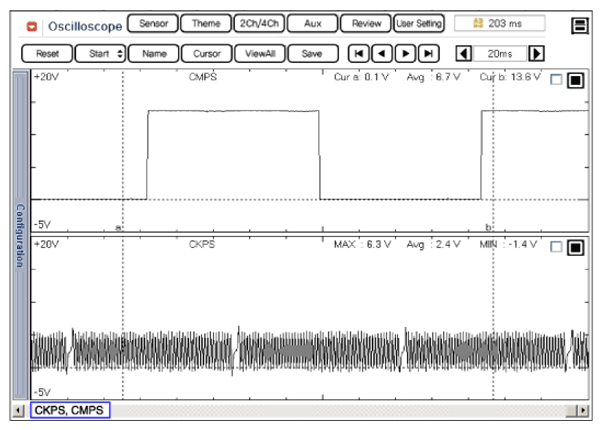

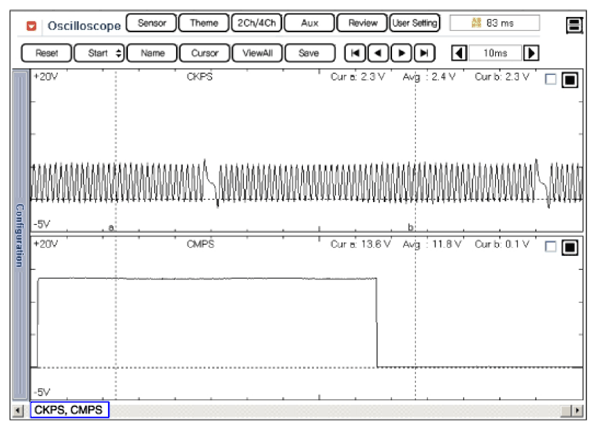

Crankshaft Position Sensor (CKPS): Troubleshooting: Waveform
WARNING:
This page is about a different variant/trim than selected.
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
