Section 23 (Engine Control System - 2.0L)
>>
Crankshaft Position Sensor (CKPS)
>>
Schematic Diagrams
>>

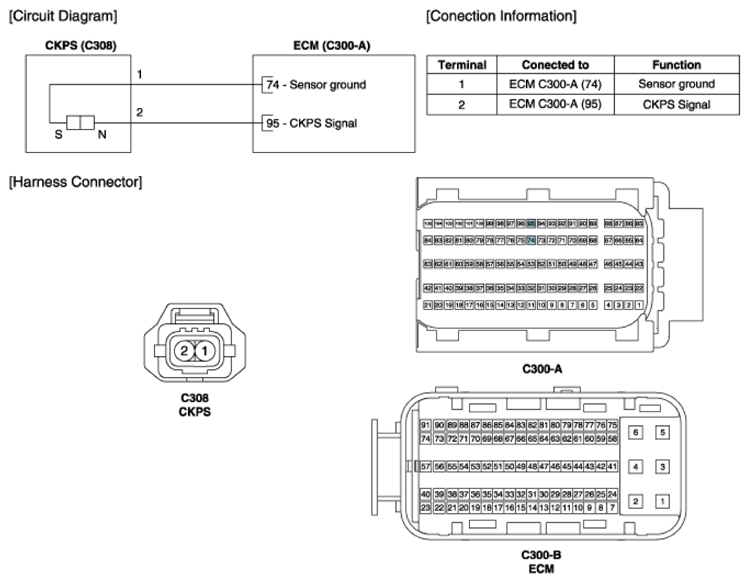

Circuit Diagram
Circuit Diagram
WARNING:
This page is about a different variant/trim than selected.
Courtesy of HYUNDAI MOTOR AMERICA
