Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Disconnect the CVVT oil control valve connector (A).
  3. Remove the installation bolt (B), and then remove the valve from the engine.

    [Bank 1/Intake #1]

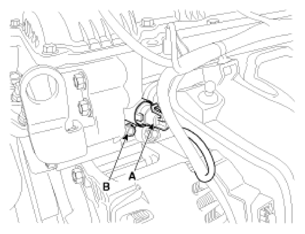

    G12606931Courtesy of HYUNDAI MOTOR AMERICA

    [Bank 1/Intake #2]

    G12606932Courtesy of HYUNDAI MOTOR AMERICA

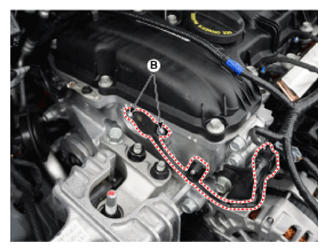

    G12606933Courtesy of HYUNDAI MOTOR AMERICA

    [Bank 1/Exhaust]

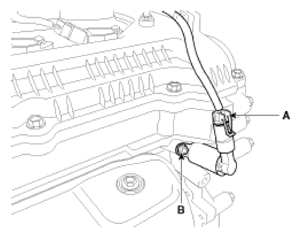

    G12606934Courtesy of HYUNDAI MOTOR AMERICA
