Engine Mounting Bracket
WARNING: This page is about a different variant/trim than selected.
- Remove the engine room under cover.
(Refer to Engine and Transaxle Assembly - "ENGINE ROOM UNDER COVER ")
- Install the jack under the edge of lower oil pan to support the engine.NOTE:
- Put the rubber block between the jack and oil pan to avoid damaging the oil pan.

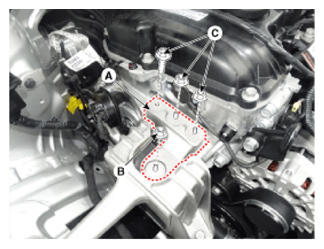

- Remove the engine mounting support bracket (A).
Tightening torque
Nut (B):
78.5 - 98.1 N.m (8.0 - 10.0 kgf.m, 57.9 - 72.3 lb-ft)
Bolt, Nuts (C):
58.8 - 73.5 N.m (6.0 - 7.5 kgf.m, 43.4 - 54.2 lb-ft)

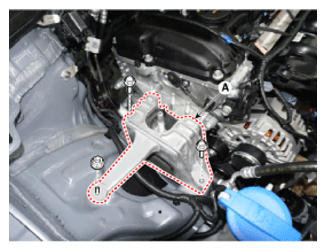

- Remove the engine mounting bracket (A).
Tightening torque:
49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 lb-ft)
- Install in the reverse order of removal.
