Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.

NOTE:

Use fender covers to avoid damaging painted surfaces.
To avoid damage, unplug the wiring connectors carefully while holding the connector portion.

Information

Mark all wiring and hoses to avoid misconception.
For release the fuel system pressure before remove the engine assembly, start the engine without fuel pump relay. and then turn off the ignition switch after engine stops.

Remove the engine cover.
(Refer to Engine and Transaxle Assembly - "ENGINE COVER ")
Remove the air duct and air cleaner assembly.
(Refer to Intake and Exhaust System - "AIR CLEANER ")
Remove the battery.
(Refer to Engine Electrical System - "BATTERY ")
Remove the engine control module (ECM).
(Refer to Engine Control/Fuel System - "ENGINE CONTROL MODULE (ECM) ")
Remove the battery tray.
(Refer to Engine Electrical System - "BATTERY ")
Remove the engine room under cover.
(Refer to Engine and Transaxle Assembly - "ENGINE ROOM UNDER COVER ")
Drain the engine coolant.
(Refer to Cooling System - "COOLANT ")

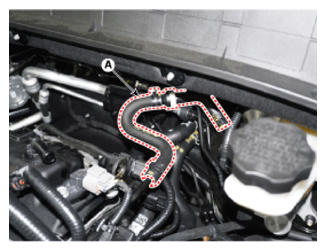

Disconnect the brake booster vacuum hose (A).

Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the fuel hose (A) and the purge control solenoid valve (PCSV) hose (B).

Courtesy of HYUNDAI MOTOR AMERICA

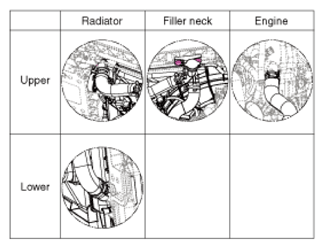

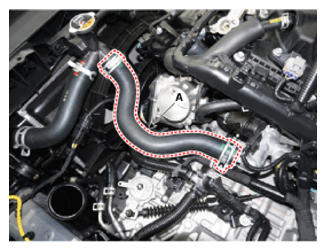

Disconnect the radiator upper hose (A).

Courtesy of HYUNDAI MOTOR AMERICA

NOTE:

When installing radiator hoses, install as shown in illustrations.

Courtesy of HYUNDAI MOTOR AMERICA

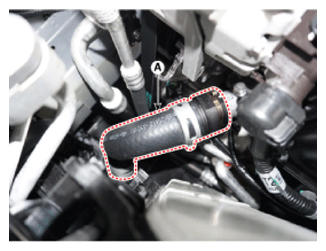

Disconnect the radiator lower hose quick connector (A).

Courtesy of HYUNDAI MOTOR AMERICA

NOTE:

When installing radiator hoses, install as shown in illustrations.

Courtesy of HYUNDAI MOTOR AMERICA

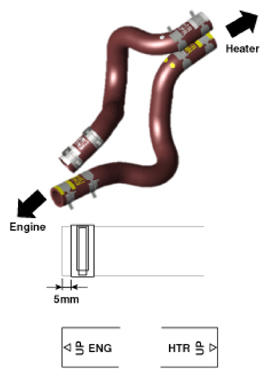

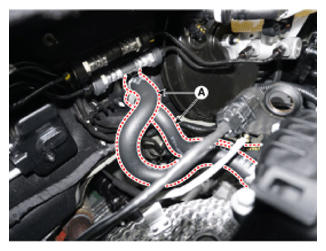

Disconnect the heater hoses (A).

Courtesy of HYUNDAI MOTOR AMERICA

NOTE:

When installing the heater hoses, install as shown in illustrations.

Courtesy of HYUNDAI MOTOR AMERICA

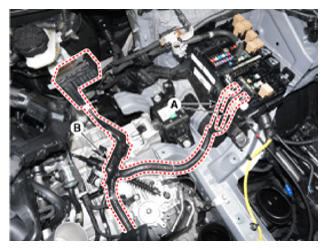

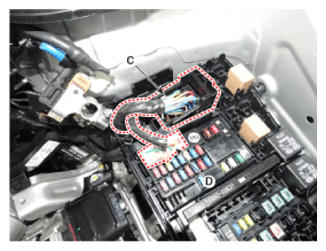

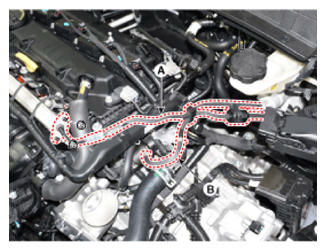

Disconnect the wiring harness from the engine room.

Remove the ground bolts (A).
Disconnect the battery negative terminal connector (B).
Disconnect the front harness connector (C).
Disconnect the PCB block (D).

Disconnect the wiring protector (E).

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA

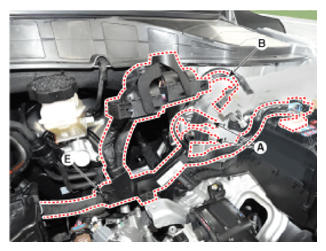

Disconnect the battery positive wirings (A).

Disconnect the wiring protector (B).

Courtesy of HYUNDAI MOTOR AMERICA

Disconnect the ATF cooler hoses.
(Refer to Automatic Transaxle Cooling System - "OIL COOLER ")
Recover the refrigerant and then remove the high pressure pipe and low pressure pipe.
(Refer to Heating, Ventilation Air conditioning - "COMPRESSOR ")
Remove the transaxle wire harness connectors and control cable from the transaxle.
(Refer to Automatic Transaxle System - "AUTOMATIC TRANSAXLE ")
Remove the propeller shaft. [4WD only]
(Refer to Driveshaft and Axle - "PROPELLER SHAFT ASSEMBLY ")
Remove the front muffler.
(Refer to Intake and Exhaust System - "MUFFLER ")
Remove the steering U-joint mounting bolt.
(Refer to Steering System - "STEERING GEAR BOX ")
Remove the roll rod bracket (A).
Tightening torque

Bolts (B):

49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 lb-ft)

Nut (C):

107.9 - 127.5 N.m (11.0 - 13.0 kgf.m, 79.6 - 94.0 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
Remove the roll rod mounting support bracket (A).
Tightening torque:

49.0 - 68.6 N.m (5.0 - 7.0 kgf.m, 36.2 - 50.6 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
Remove the sub frame.
(Refer to Suspension System - "SUB FRAME ")
Support the engine and transaxle assembly with a floor jack.

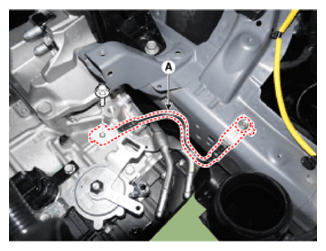

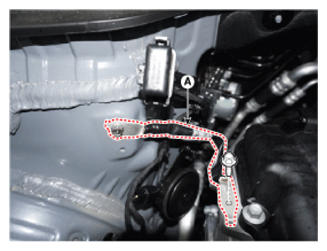

Disconnect the engine ground cable (A).
Tightening torque:

10.8 - 13.7 N.m (1.1 - 1.4 kgf.m. 8.0 - 10.1 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

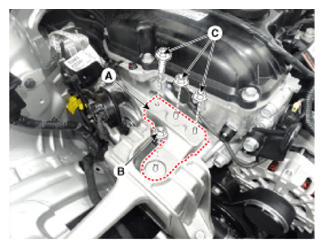

Remove the engine mounting support bracket (A).
Tightening torque

Nut (B):

78.5 - 98.1 N.m (8.0 - 10.0 kgf.m, 57.9 - 72.3 lb-ft)

Bolt, Nuts (C):

58.8 - 73.5 N.m (6.0 - 7.5 kgf.m, 43.4 - 54.2 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the transaxle ground cable (A).
Tightening torque:

10.8 - 13.7 N.m (1.1 - 1.4 kgf.m, 8.0 - 10.1 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

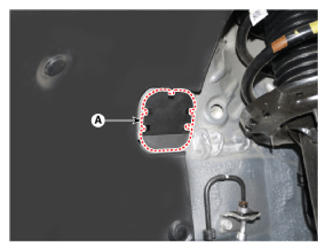

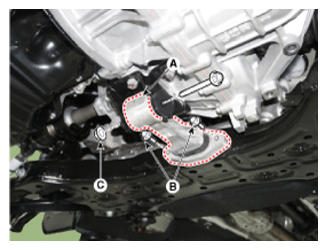

Remove the service cover (A).

Courtesy of HYUNDAI MOTOR AMERICA

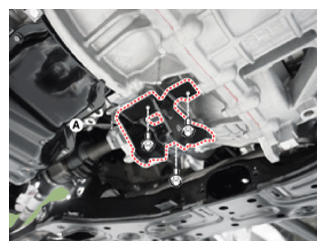

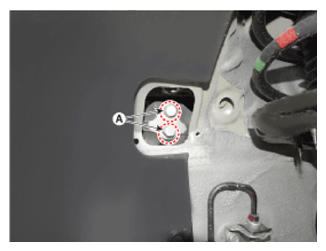

Remove the transaxle support bracket mounting bolts (A).
Tightening torque:

107.9 - 127.5 N.m (11.0 - 13.0 kgf.m, 79.6 - 94.0 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

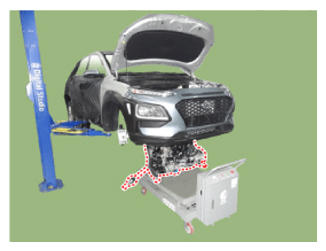

Remove the engine and transaxle assembly by lifting vehicle.

Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
- Before removing the engine and transaxle assembly, make sure hoses and wire connectors are disconnected.
- When removing the engine and transaxle assembly, be careful not to damage any surrounding parts or body components.
