Propeller Shaft Runout

WARNING: This page is about a different variant/trim than selected.

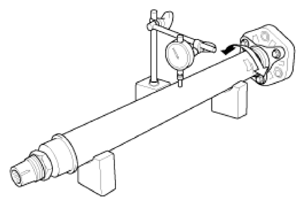

  1. Install a dial indicator with its needle on the center of front propeller shaft or rear propeller shaft.
  2. Turn the propeller shaft slowly and check the runout. Repeat this procedure for the other propeller shaft.

    Propeller Shaft Runout:  0.3 mm (0.012 in.)

    G12605870Courtesy of HYUNDAI MOTOR AMERICA
