Inspect Flexible Coupling

WARNING: This page is about a different variant/trim than selected.
  1. Check the front and rear flexible couplings for cracks or damage.

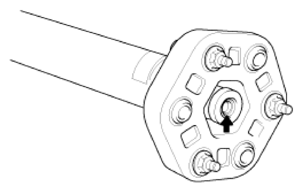

  2. Inspect the flexible coupling centering bushing. If the busing is damaged, replace the propeller shaft assembly.
    G12605869Courtesy of HYUNDAI MOTOR AMERICA
