CV Joint And Boot
WARNING: This page is about a different variant/trim than selected.
- Place the transmission in neutral or N.
- Raise the vehicle, and make sure it is securely supported.

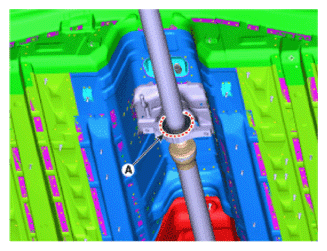

- Check the CV joint boot (A). If the CV joint boot is damaged, replace the propeller shaft assembly.
 Courtesy of HYUNDAI MOTOR AMERICA
|
- Check the excessive movement of CV joint.
If has that, should be replaced the propeller shaft.
