Charging System: Alternator
WARNING: This page is about a different variant/trim than selected.
ALTERNATOR SPECIFICATIONS
| Item | Specification | |
|---|---|---|
| Rated voltage | 13.5V, 150A | |
| Speed in use | 1, 000 - 18, 000 RPM | |
| Voltage regulator | IC Regulator built-in type | |

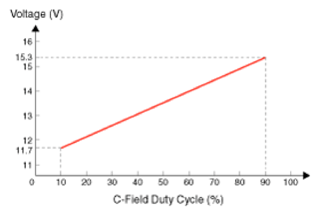

| Regulator Setting Voltage | External mode | Refer to below graph |
| Internal mode | 14.55±0.3V | |
| Temperature Gradient | External mode | 0±3 mV/°C |
| Internal mode | -3.5±2mV/°C | |
