Removal And Installation
WARNING: This page is about a different variant/trim than selected.

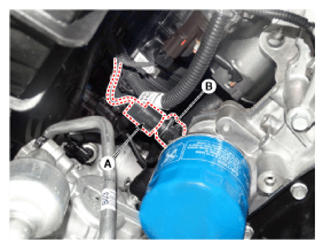

- Disconnect the oil pressure switch connector (A) and then remove the oil pressure switch (B).
Tightening torque:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)
- Install in the reverse order of removal.
NOTE:
- When installing the oil pressure switch, apply seal lock to the thread.
Seal lock: THREEBOND 2403
Thickness: 0.2 - 0.4 mm (0.008 - 0.016 in.)
