Components And Components Location: Components

WARNING: This page is about a different variant/trim than selected.

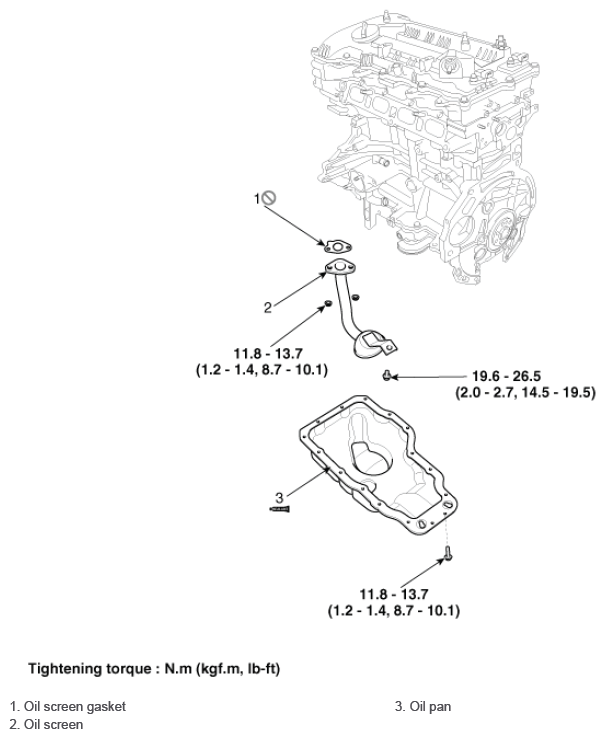

Fig 1: Oil Pan Components With Torque Specification
G12606666Courtesy of HYUNDAI MOTOR AMERICA
