CVVT System Mode

WARNING: This page is about a different variant/trim than selected.

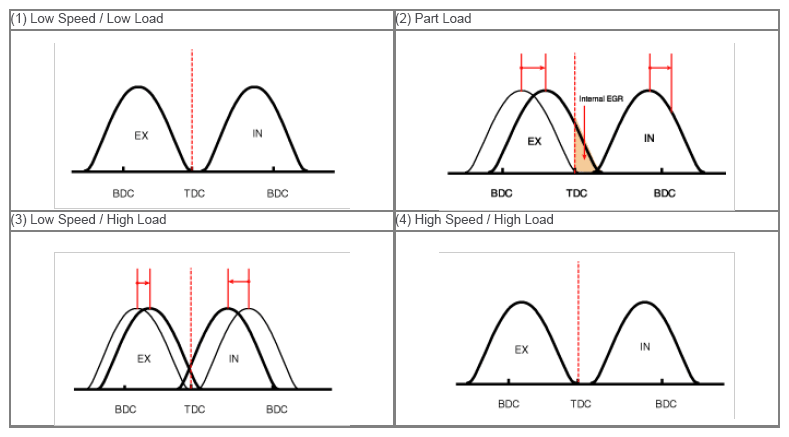

G12606465Courtesy of HYUNDAI MOTOR AMERICA

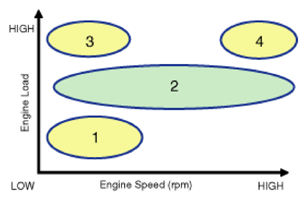

G12606466Courtesy of HYUNDAI MOTOR AMERICA
Driving Condition Exhaust Valve Intake Valve
Valve
Timing		 Effect Valve
Timing		 Effect
(1) Low Speed
/Low Load		 Completely
Advance		 * Valve Under-lap
* Improvement of combustion stability		 Completely
Retard		 * Valve Under-lap
* Improvement of combustion stability
(2) Part Load Retard * Reduction of HC Retard * Delays the closing time of intake valve to reduce pumping loss
* Increases expansion work
(3) Low Speed
/High Load		 Retard * Increase of expansion work Advance * Prevention of intake back flow (Improvement of volumetric efficiency)
(4) High Speed
/High Load		 Advance * Reduction of pumping loss Retard * Improvement of volumetric efficiency
