Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.

Remove the cylinder head cover.
(Refer to Cylinder Head Assembly - "CYLINDER HEAD COVER ")

Set No.1 cylinder to top dead center (TDC) on compression stroke.

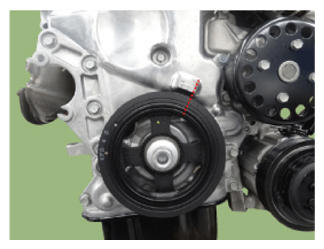

Turn the crankshaft damper pulley and align its groove with the timing mark of the timing chain cover.

Courtesy of HYUNDAI MOTOR AMERICA

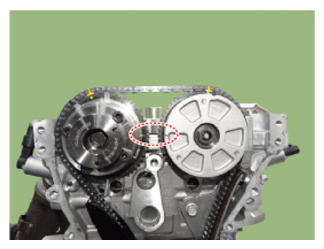

Check that the TDC marks of the intake and exhaust CVVT sprockets are in straight line on the cylinder head surface as shown in the illustration. If not, turn the crankshaft by one revolution (360°) more.

Courtesy of HYUNDAI MOTOR AMERICA

NOTE:

Do not turn the crankshaft damper pulley counterclockwise.

Remove the timing chain cover & oil pump assembly.
(Refer to Timing System - "TIMING CHAIN COVER & OIL PUMP ASSEMBLY ")

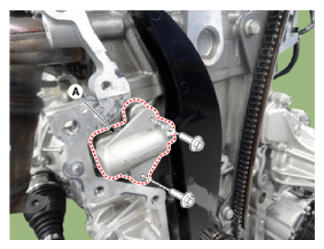

Remove the timing chain tensioner (A).

Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
- Do not reuse the detached tensioner.

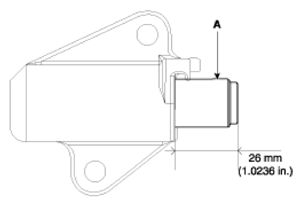

- If need to reuse the tensioner, remove the tensioner, make the piston (A) to protrude maximally, push the piston (A) to the end, and then mount the stopper pin.

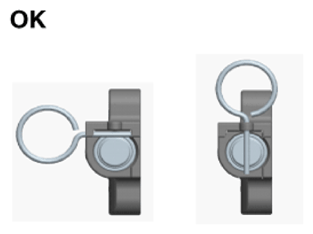

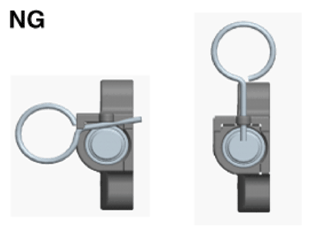

  At this time, the tensioner fixing pin should be placed in the same way as when the product was first delivered from the factory.
Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA

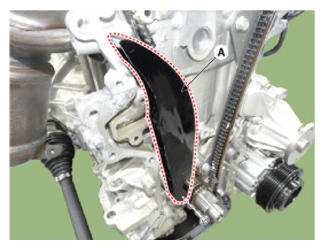

Remove the timing chain tensioner arm (A).

Courtesy of HYUNDAI MOTOR AMERICA

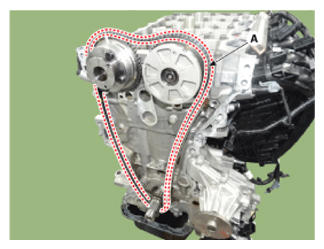

Remove the timing chain (A).

Courtesy of HYUNDAI MOTOR AMERICA

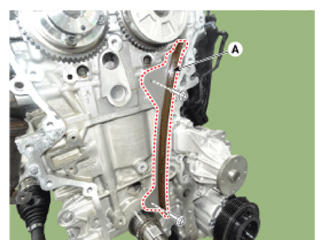

Remove the timing chain guide (A).

Courtesy of HYUNDAI MOTOR AMERICA
