Removal And Installation
WARNING: This page is about a different variant/trim than selected.
- Remove the drive belt.
(Refer to Timing System - "DRIVE BELT ")

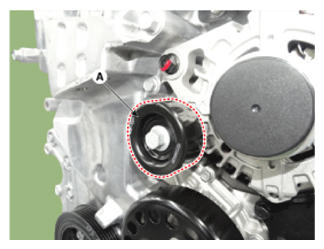

- Remove the idler (A).
Tightening torque:
39.2 - 49.0 N.m (4.0 - 5.0 kgf.m, 28.9 - 36.2 lb-ft)
- Install in the reverse order of removal.
