Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the drive belt.

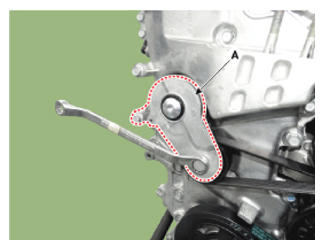

    1. Using the wrench, turning the drive belt tensioner (A) counterclockwise.
      G12606400Courtesy of HYUNDAI MOTOR AMERICA

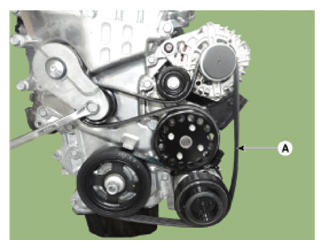

    2. Disconnect the drive belt (A).
      G12606401Courtesy of HYUNDAI MOTOR AMERICA

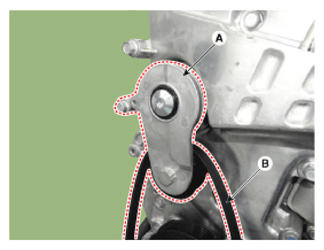

    3. Remove the drive belt tensioner (A) and then remove the drive belt (B).
      G12606402Courtesy of HYUNDAI MOTOR AMERICA
