Repair Procedures: Installation

WARNING: This page is about a different variant/trim than selected.
  1. Install the drive belt.

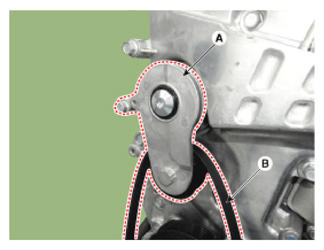

    1. Install the drive belt (B) and then install the drive belt tensioner (A).

      Tightening torque

      center bolt:

      29.4 - 41.2 N.m (3.0 - 4.2 kgf.m, 21.7 - 30.4 lb-ft)

      fixing bolt:

      39.2 - 49.0 N.m (4.0 - 5.0 kgf.m, 28.9 - 36.2 lb-ft)

      G12606410Courtesy of HYUNDAI MOTOR AMERICA

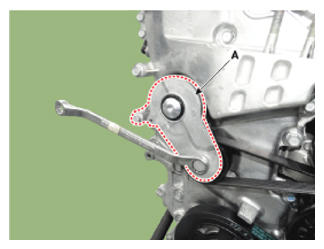

    2. Using the wrench, turning the drive belt tensioner (A) counterclockwise.
      G12606411Courtesy of HYUNDAI MOTOR AMERICA

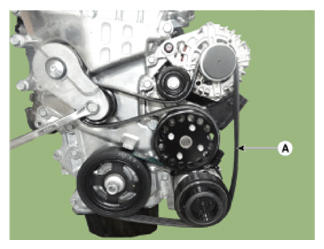

    3. Connect the drive belt (A).
      Fig 1: Engine Drive Belt Routing Diagram
      G12606412Courtesy of HYUNDAI MOTOR AMERICA
    4. Remove the wrench.
